tachometer 3

Main advantages of the device:

• The device is fully legal – in accordance with Regulation (EU) No. 1266/2009

• The travel time has been extended to 45 minutes per day.

• Easy to use, quick installation.

• 2 operating modes (29 seconds and 58 seconds).

• Installation in a 12/24V car.

• Acoustic signal to warn of impending time loss.

• Focus on safe driving without having to use a stopwatch.

• Option to use 29 seconds of driving time at any time (readiness is indicated by a green LED) or every 2 minutes and 58 seconds.

Advantages of Mode 29
Saves the driver working time.
Free repositioning of the vehicle without interrupting the rest period.
Solves the problem when boarding a ferry, at a border, or in a traffic jam.
The countdown for the vehicle conversion begins as soon as the vehicle is started.
You can move at any time after the countdown has ended.
29 seconds per minute.
An acoustic signal will inform you when the driving time has expired.

Advantages of Mode 58
Savings in working time for the driver.
Free short journeys without interrupting the rest period.
Solution to the problem of short journeys on the ferry, at the border or in traffic jams.
The countdown for the time to reposition the vehicle is synchronized with the tachograph; the driver must adapt to the signals from the tachograph timer.
58 seconds every 2 minutes.
The acoustic signal that indicates the end of the driving time.

In the first mode, the device divides the minute into 29 seconds and 31 seconds – during the first 29 seconds, we can drive a short distance without recording the journey. In this mode, the tachograph registers a pause instead of a journey. If, within a given minute, the journey lasts between 1 and 29 seconds and is followed by a pause, the tachograph registers the pause according to the rule of predominant activity.

In the second mode, the time is counted continuously. The illuminated red LED indicates the stop time, the green one the driving time. The countdown continues continuously – in descending order – regardless of whether the device is switched on. When the value on the display reaches zero, the green LED lights up, indicating the start of the driving time. The driver then has 58 seconds and must adhere to the speedometer timer.

The tachograph timer's beeping sound warns the driver that the time is running out. From 10 seconds to 6 seconds, it beeps every second, and from 6 seconds onward, it beeps continuously to warn the driver to stop the vehicle. It is very important to switch the tachograph to sleep mode within 29 seconds of stopping.

Technical data
Dimensions (mm) Ø49.8×14
Weight (g) 30
Operating temperature range (°C) -20 to +80
Protection class IP20

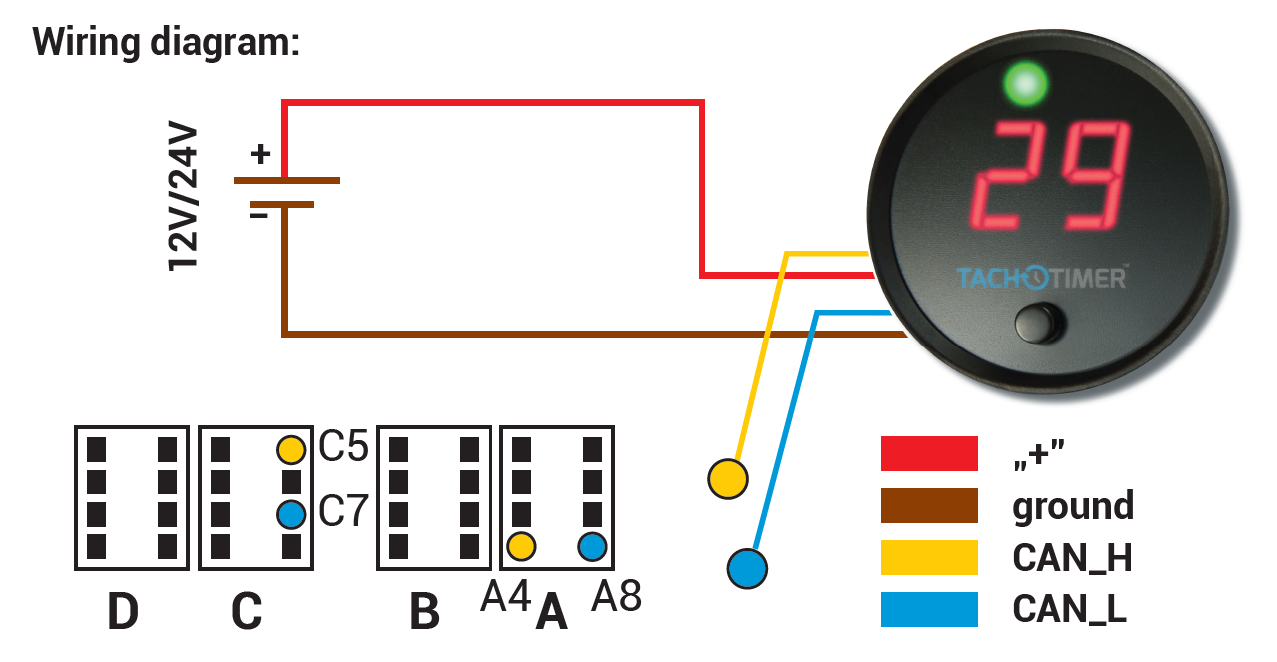

Power source (V) + 12 or 24 (negative to ground) DC
Operating voltage (V) 3.3 DC
Power consumption 20 mA
Mounting: 3M SJ 3550 double-sided adhesive tape
